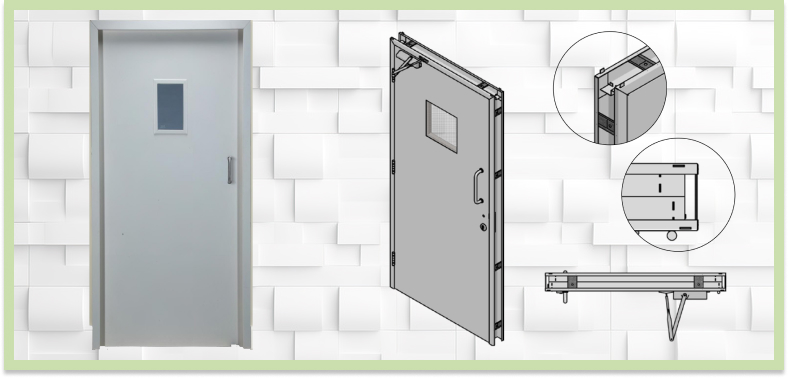

General Door
Our General Doors are crafted using durable steel construction and offer an elegant and professional finish suitable for both commercial and residential spaces. Built with precision, these doors combine form and function to meet modern safety and design standards.
Size
- Standard Width: 800mm – 1000mm
- Height: 2000mm – 2100mm
- Thickness: 40mm – 45mm
Materials
- Core: Honeycomb / Rockwool / Polyurethane Foam (PUF)
- Shutter Skin: Galvanized Iron (GI), 0.8mm to 1.2mm thick
- Finish: Powder-coated / Polyurethane painted (custom RAL shades available)
Frame
- Galvanized Iron (GI) Frame, 1.2mm – 1.6mm thick
- Welded or knock-down type
- Anchor fasteners for wall fixing
Door Types
- Flush Door (Plain or with Bead)
- With or without Vision Panel / Louver (optional)
Hardware (Optional)
- SS Hinges, Mortise Lock / Lever Handle
- Door Closer, Door Stopper, Rubber Gasket
Applications
- Suitable for toilets, stores, utility rooms, corridor doors
- Ideal for internal doors in commercial, institutional, or residential buildings

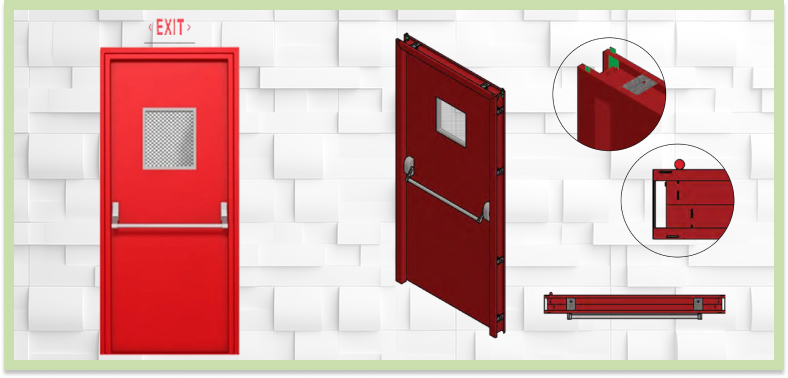

2 Hrs Fire Rated Door
Our 2 Hrs Fire Rated Doors are engineered to provide maximum fire protection up to 120 minutes. These doors are built for commercial, industrial, and high-risk environments to ensure life and property safety under extreme conditions.
Material
- Galvanized Steel / Stainless Steel
Core
- Rockwool / Honeycomb / Ceramic Wool
Fire Rating
- 120 minutes certified to UL / BS / IS standards
Finish
- Powder Coated / PU Painted
Hardware
- Fire Rated Hinges, Panic Bar, Door Closer
Vision Panel
- Fire Rated Glass (Optional)
Standard Sizes
- Single Door: 900 x 2100 mm
- Double Door: 1800 x 2100 mm

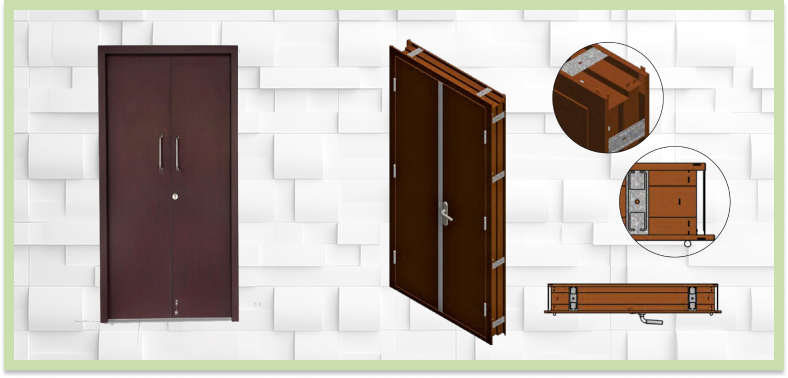

Egress Door (Rockwool)
Designed for emergency exit safety, our Rockwool-insulated Egress Doors offer excellent thermal and fire resistance. Perfect for commercial and residential buildings requiring reliable evacuation routes.
Materials
- Core: Honeycomb / Rockwool (for fire-rated models)
- Finish: Galvanized Steel (GI) / Stainless Steel
Hardware
- Panic bar, Door Closer, Hinges
- Vision Panel (Optional)
Features
- Compliant with international building and life safety codes
- Outward-opening design for emergency egress
- Single or double leaf options available
- Smoke seal and intumescent strips available
- Ideal for staircases, corridors, and emergency exits
Size
- Width: 900mm – 1200mm
- Height: 2100mm – 2400mm
- Thickness: 40mm – 70mm (based on fire rating and material)

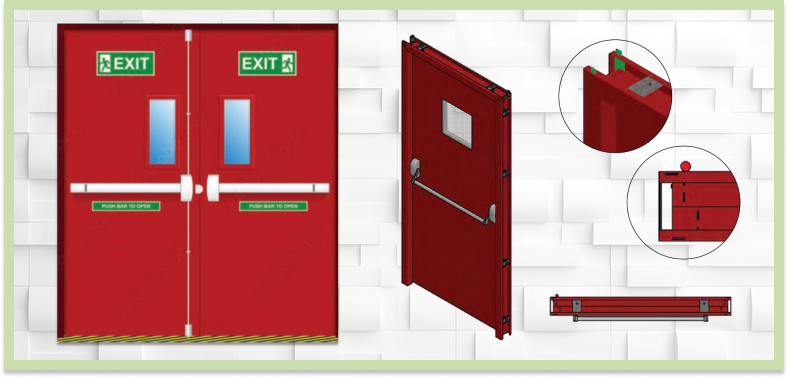

Fire Exit Door
Built for emergency evacuations, our Fire Exit Doors deliver maximum safety and comply with industry standards. Ideal for high-traffic and high-risk zones.
Size
- Standard Width: 900mm – 1500mm
- Height: Up to 2400mm
- Thickness: 46mm – 70mm
Materials
- Core: Honeycomb / Rockwool
- Shutter: Galvanized Iron (GI) 0.8mm – 1.2mm
- Frame: GI 1.2mm – 1.6mm, welded or knock-down
- Finish: Powder-coated / Painted (custom RAL shades)
Hardware (Optional)
- SS Hinges, Lever Handle / Mortise Lock
- Door Closer, Door Stopper
- Vision Panel, Louvers, Push Plate (Optional)
Features
- Rigid, rust-proof construction
- Fire-retardant (non-rated or as required)
- Termite-proof, maintenance-free
- Custom designs and cutouts possible
Applications
- Internal and external use in commercial, industrial, institutional, and residential buildings
- Ideal for utility rooms, service areas, common corridors

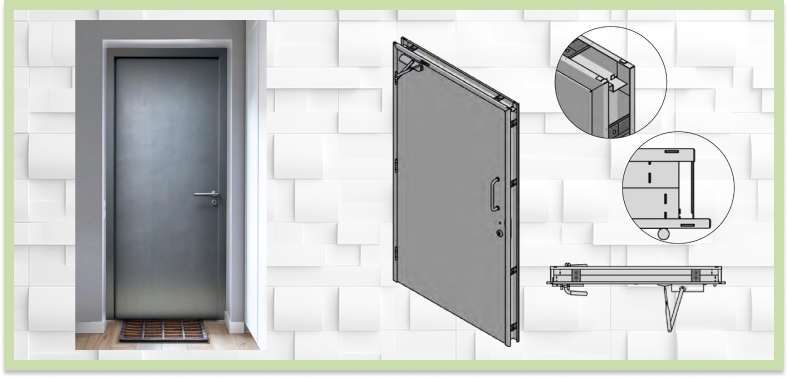

Stainless Steel Door
Stainless steel doors are crafted for durability, strength, and corrosion resistance, making them an ideal choice for high-performance environments. Designed to withstand harsh conditions, they are easy to maintain and provide long-lasting performance.
Technical Specifications
- Material: SS304
- Infill: Honeycomb / Puff / Rockwool
Frame Profile (mm)
- Single Rebate: 100x58x1.2, 100x58x1.6, 100x78x1.2/1.6
- Double Rebate: 143x58x1.2, 143x58x1.6, 143x78x1.2, 143x78x1.6
Door Sizes
- Single Leaf: up to 1420mm (W), up to 3000mm (H)
- Double Leaf: up to 2840mm (W), up to 3000mm (H)
- Shutter Thickness: 46mm
Areas of Application
- Kitchens
- Food Processing Areas
- Hospitals
- Cleanrooms
- Industrial Facilities

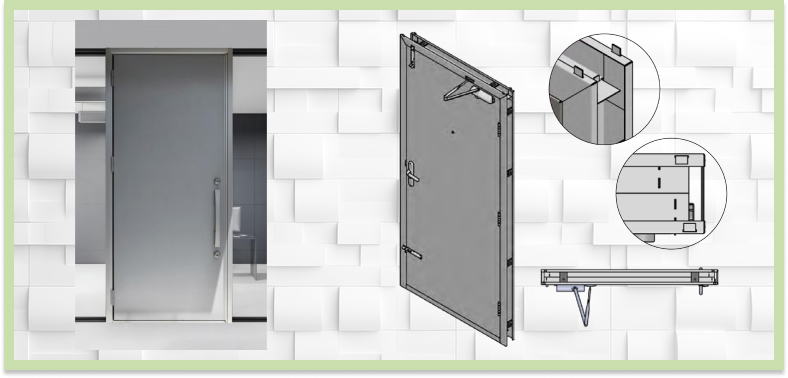

Acoustic Door
Acoustic doors are designed to provide superior sound insulation, ensuring noise reduction and enhanced privacy. Constructed with high-density materials and advanced sealing technology, these doors effectively block sound transmission while maintaining strength and durability.
Technical Specifications
- Material: GPSP (Galvanized Plain Skin Pass)
- Infill: Rockwool
Frame Profile (mm)
- Single Rebate: 100x58x1.6, 100x78x1.6
- Double Rebate: 143x58x1.6, 143x78x1.6
Door Sizes
- Single Leaf: Up to 1420mm (Width), Up to 3000mm (Height)
- Double Leaf: Up to 2840mm (Width), Up to 3000mm (Height)
- Shutter Thickness: 46mm
Areas of Application
- Studios
- Conference Rooms
- Hospitals
- Hotels
- Offices requiring noise control

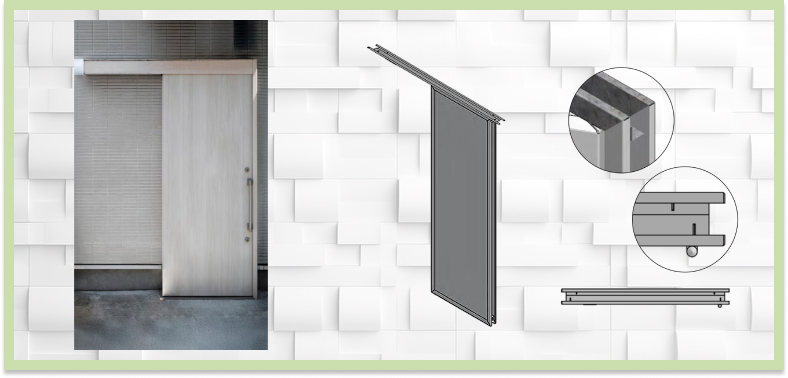

Sliding Door
General sliding doors provide a space-saving solution with smooth operation and durable tracks. Designed for reliability, they offer easy access and a modern aesthetic, perfect for high-traffic areas or stylish spaces.
Technical Specifications
- Material: GPSP (Galvanized Plain Skin Pass)
- Infill: Honeycomb / Puff / Rockwool
Frame Profile (mm)
- Single Rebate: 80x65x1.20mm / 80x65x1.6mm
- Double Rebate: N/A
Door Sizes
- Single Leaf: Up to 1420mm (Width), Up to 3000mm (Height)
- Double Leaf: Up to 2840mm (Width), Up to 3000mm (Height)
- Shutter Thickness: 46mm
Areas of Application
- Retail Stores
- Malls
- Office Buildings
- Hospitals

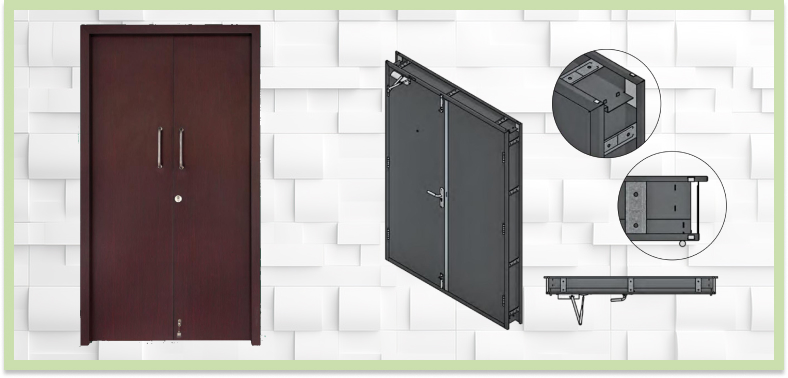

Egress Door (GPSP)
Our shaft doors offer reliable access and safety for service areas like elevator shafts and utility rooms. Made from high-grade steel, they meet fire safety and durability standards. Available in various sizes and finishes for a perfect fit in any project.
Technical Specifications
- Material: GPSP (Galvanized Plain Skin Pass)
- Infill: Honeycomb / Puff / Rockwool
Frame Profile (mm)
- Single Rebate: 100x65x1.20mm / 100x65x1.6mm
- Double Rebate: N/A
Door Sizes
- Single Leaf: Up to 1420mm (Width), Up to 3000mm (Height)
- Double Leaf: Up to 2840mm (Width), Up to 3000mm (Height)
- Shutter Thickness: 46mm
Areas of Application
- Commercial Buildings
- Hospitals
- Schools
- Industrial Facilities
- Hotels
- Residential Buildings

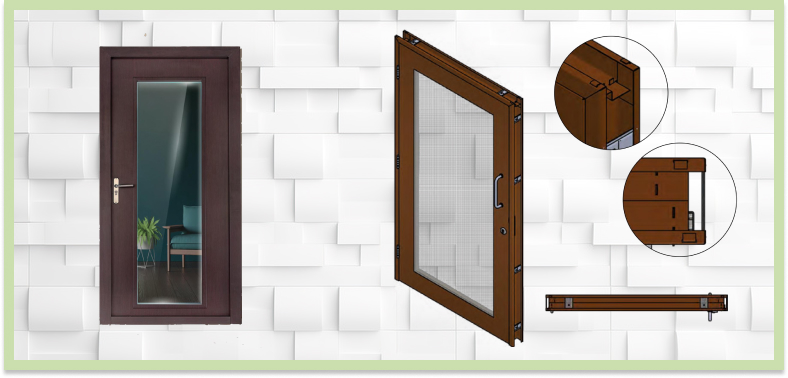

Rail & Stile Door
Rail and stile doors combine a large glass panel with a metal frame, offering modern aesthetics and steel durability. Customizable in size, finish, and hardware, they balance transparency and strength for visually striking, secure spaces.
Technical Specifications
- Material: GPSP (Galvanized Plain Skin Pass)
- Infill: Honeycomb / Puff / Rockwool
Frame Profile (mm)
- Single Rebate: 100x58x1.2, 100x58x1.6, 100x78x1.2 / 1.6
- Double Rebate: 143x58x1.6, 143x78x1.6
Door Sizes
- Single Leaf: Up to 1420mm (Width), Up to 3000mm (Height)
- Double Leaf: Up to 2840mm (Width), Up to 3000mm (Height)
- Shutter Thickness: 46mm
Areas of Application
- Commercial and Residential Buildings
- Offices
- Lobbies
- Public Spaces

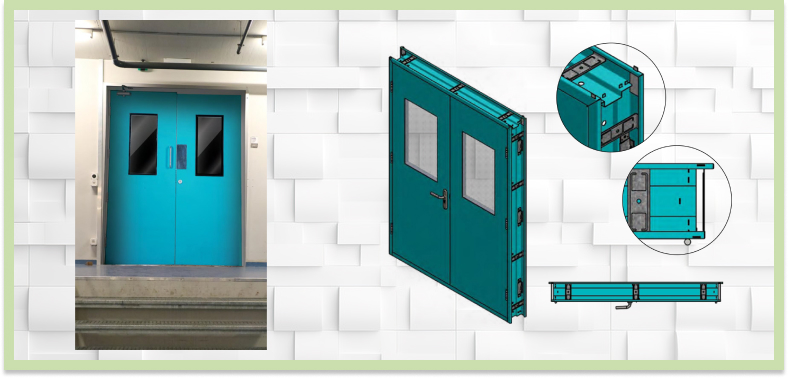

Scientific Door
Scientific doors, made from stainless or galvanized steel, offer easy cleaning and durability. Their smooth, nonporous surfaces resist dirt, germs, and chemicals, providing protection against bacteria and insects.
Technical Specifications
- Material: GPSP (Galvanized Plain Skin Pass)
- Infill: Honeycomb / Puff / Rockwool
Frame Profile (mm)
- Single Rebate: 100x58x1.2, 100x58x1.6, 100x78x1.2 / 1.6
- Double Rebate: 143x58x1.6, 143x78x1.6
Door Sizes
- Single Leaf: Up to 1420mm (Width), Up to 3000mm (Height)
- Double Leaf: Up to 2840mm (Width), Up to 3000mm (Height)
- Shutter Thickness: 46mm

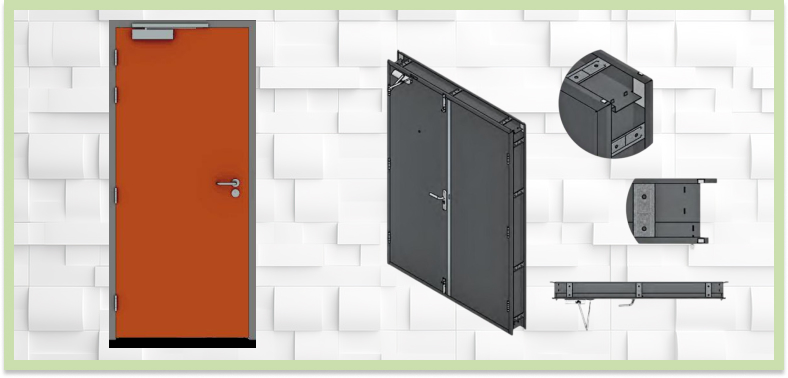

Lead Lined Door
Lead lined doors are designed to provide superior radiation shielding in medical and industrial environments. Constructed with GPSP steel and an internal lead sheet layer, these doors offer both safety and structural durability.
Technical Specifications
- Material: GPSP (Galvanized Plain Skin Pass)
- Infill: PUFF / Rockwool with Lead Sheet
Frame Profile (mm)
- Single Rebate: 100x58x1.2, 100x58x1.6, 100x78x1.2 / 1.6
- Double Rebate: 143x58x1.6, 143x78x1.6
Door Sizes
- Single Leaf: Up to 1420mm (W) × 3000mm (H)
- Double Leaf: Up to 2840mm (W) × 3000mm (H)
- Shutter Thickness: 46mm

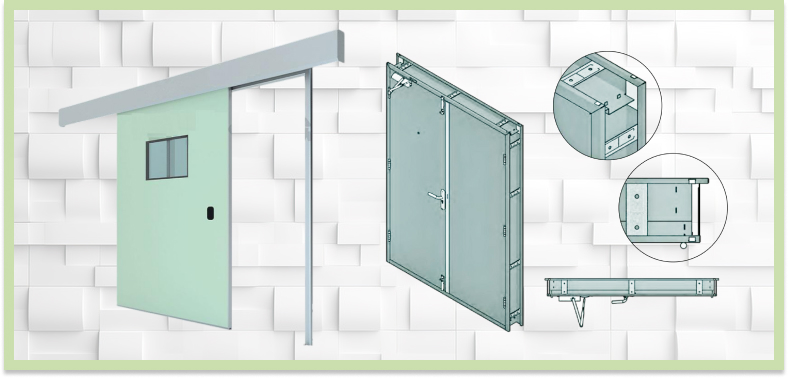

Automatic Sliding Door
Automatic Sliding doors provide seamless, touch-free entry, enhancing hygiene and convenience. Commonly used in hospitals, offices, and commercial spaces, these doors offer quiet operation and can be customized to suit various architectural needs.
Technical Specifications
Single Sliding Door
- Bi-parting sliding doors (two panels sliding in opposite directions)
Door Material
- Tempered or laminated glass (8–12 mm thick)
- Steel or UPVC frames
- Optional: Composite panels for special designs
Opening Size
- Width: 1000–3000 mm (customizable)
- Height: 2100–3000 mm (customizable)
Drive System
- Motorized mechanism (brushless DC motor)
- Rated voltage: 24V DC
- Power supply: 230V AC, 50/60 Hz
- Opening speed: 300–600 mm/s
- Closing speed: 250–500 mm/s
- Hold open time: Adjustable (1–10 seconds)

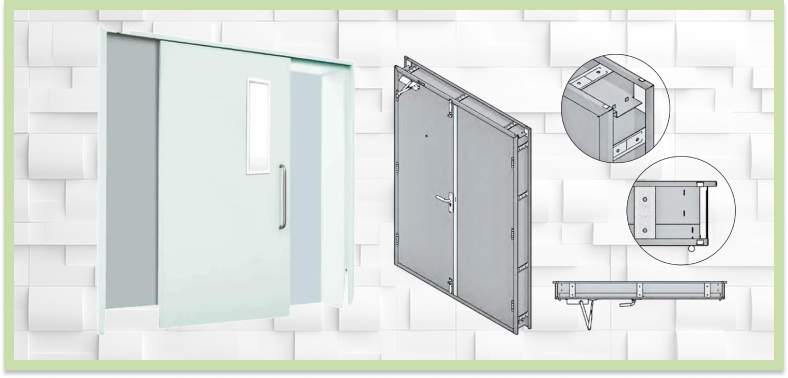

Manual Sliding Door
Manual sliding doors are a practical and space-saving solution, commonly used in healthcare, industrial, and commercial settings. They operate smoothly using high-quality hardware and can be customized to various configurations.
Technical Specifications
Type
- Single or double panel sliding doors
- Pocket door or barn door style
Door Material
- Glass, steel, or PVC
- Glass thickness: 8–12 mm for frameless doors
Opening Size
- Width: 800–3000 mm
- Height: 2100–3000 mm
- Custom sizes available
Hardware
- Sliding rollers and brackets (nylon or steel)
- Handles and locks (optional)
- Soft-close mechanisms (optional)

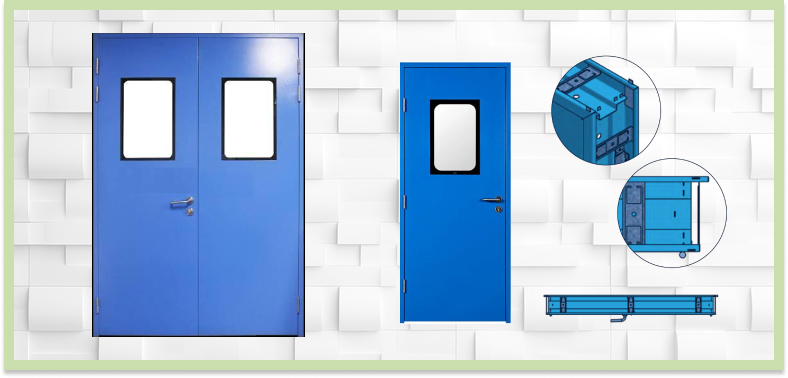

Clean Room Door
Clean room doors are designed for controlled environments, offering air-tight sealing, smooth surfaces, and compatibility with sterile conditions. These doors are widely used in pharmaceutical, biotech, and electronic industries.
Technical Specifications
Type
- GI clean room door (single or double leaf)
Glass
- 10mm / 12mm thick toughened safety glass (clear/frosted as per requirement)
Frame
- Powder-coated or stainless steel (SS 304) for clean room compatibility
Size
- As per architectural / clean room layout drawings
Hardware
- Clean room-compatible stainless steel hinges, D-handle, lockset, and door closer
Sealing
- EPDM gaskets or magnetic seals for airtightness
Finish
- Flush surfaces with easy-to-clean profiles, antimicrobial coating if required
Compliance
- Meets GMP / ISO clean room standards
Installation
- To be installed by trained personnel following clean room protocols
Optional Features
- Vision panel, interlocking system, access control readiness

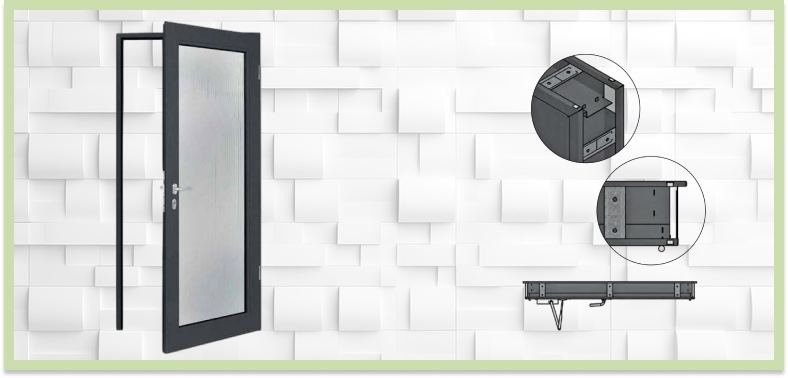

Fully Glazed Door
Fully glazed doors provide a sleek, modern look with maximum visibility and light transmission. Ideal for commercial, healthcare, and cleanroom environments, these doors combine aesthetic appeal with durability and performance.
Technical Specifications
Type
- Single / Double leaf fully glazed door
Door Leaf
- Toughened / Safety glass, 10mm / 12mm thick / 14mm (as specified)
Frame
- Steel / PVC (optional, as per design)
Glass Type
- Clear / Tinted / Frosted / Low-E glass
Size
- As per approved architectural drawings
Hardware
- Stainless steel hinges, floor spring / patch fittings, handle, lockset
Finish
- Polished edges, smooth surface
Compliance
- Conforms to IS 2553 / BS EN 12150 (or relevant standard)
Installation
- To be carried out by skilled technicians as per manufacturer’s guidelines
Accessories
- Door closers, gaskets, and seals as required for air / water tightness
